PERI Aluminium Slab Formwork

Maximize your investment value in slab construction with this simple, efficient, and cost-effective system

PERI Aluminium Slab Formwork is a lightweight, simple, and cost-effective reusable aluminium formwork system specially engineered to optimize efficiency and safety, maximizing value for every user. It redefines speed, simplicity, and flexibility in flat slab construction, setting a new benchmark for modern construction.

With its minimal components and lightweight aluminum panel, the system is quick and easy to assemble, simplifying material planning, improving on-site efficiency, and saving time. The ease of handling and easily comprehensible work steps enable even less experienced workers to use it quickly and confidently after a short introduction.

  • Easy to use
    Lightweight
    • With less than 15kg/m² on average, it can be easily handled manually.
    • No specialized tools or skilled labor are required.
  • Project Efficiency
    Design Flexibility
    • Compatible with a wide range of props and PERI shoring systems
    • Flexible choice of powder-coated or galvanized props based on needs
    • Design expertise for diverse flat slab construction requirements
  • maximize value
    Cost-Efficient
    • High reusability of standard panels for multiple projects.
    • Powder-coated aluminium panels increase formwork life.
    • Reduce lifecycle costs and maximize your return on investment
  • Fast and Efficient
    Fast Construction Cycle
    • Lightweight panel
    • Minimal components
    • Simple work steps
    • Fast cycle times



  • sustainability
    100% Recyclable
    • Significant cost recovery at the end of its use.
    • Environmentally sustainable solution.
  • Compliance
    CIDB PPS Certified

    Certified IBS solution under CIDB CIS 24 for Reusable Formwork Systems.

Redefining Slab Construction

Maximizing value and efficiency in modern construction

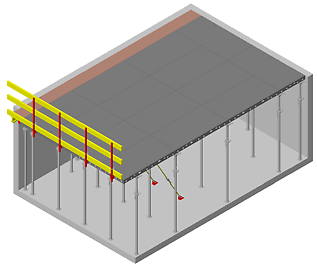

PERI Aluminium Slab Formwork enables efficient construction of large flat slab areas, such as car porches, podiums, mezzanines, facilities, open areas, and double-volume spaces, using minimal labour.

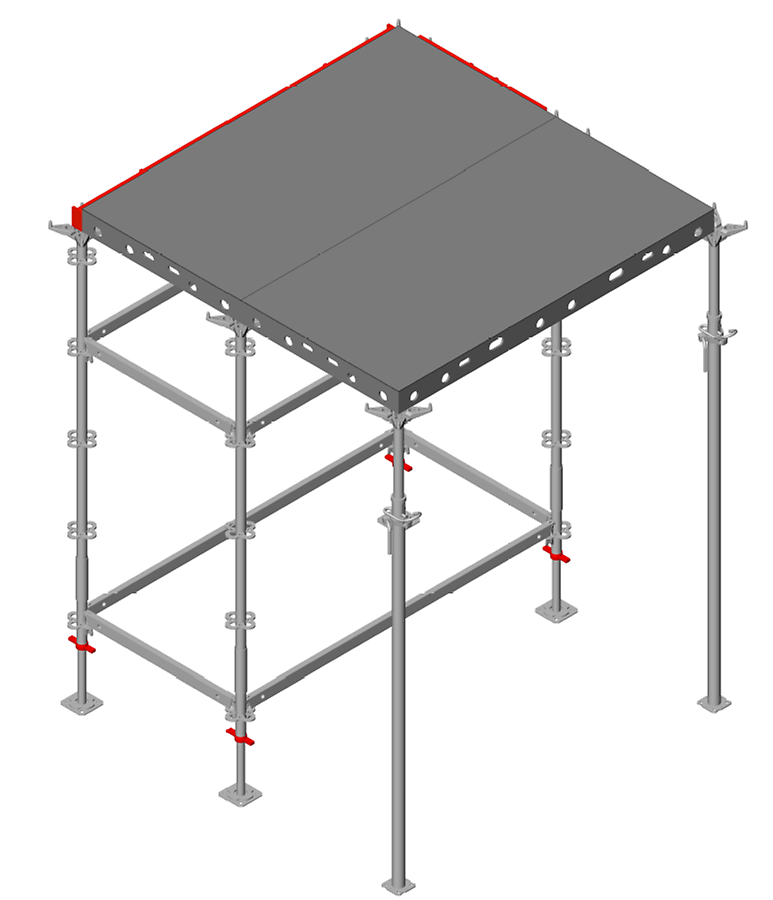

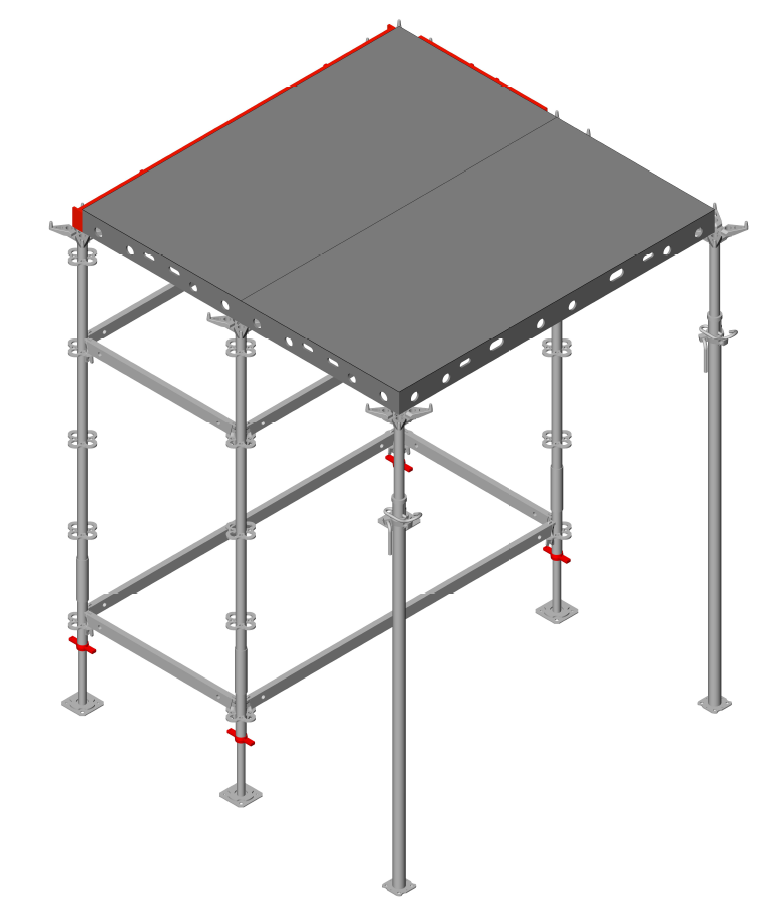

What’s more, for double-volume or open-space areas requiring shoring, the system offers full compatibility with the PERI shoring system, such as PERI UP and PERI UP MD (formerly known as PS100). With the same PERI prop head, it can be used directly with PERI UP.

With PERI filler strip panel, early striking is also possible by installing intermediate props for back-propping under the filler strip before striking the system. The filler strip panels, in combination with the props, provide direct support for the load transfer until the concrete has finally hardened.



  • Fast, Lightweight, High Load

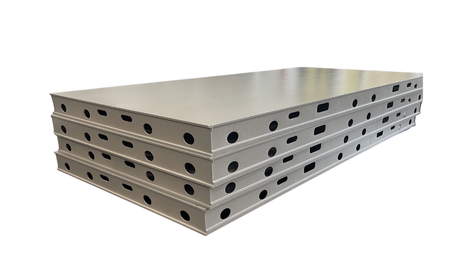

    The 1m x 2m powder-coated deck panels are suitable for slab thickness up to 400mm thick (without intermediate supports), with an extended usable lifespan with proper care and maintenance.

    With the panel weighing only 29.5 kg, they are easily handled with just two workers without the need for heavy lifting equipment.

  • Simple, Efficient and Cost-Effective

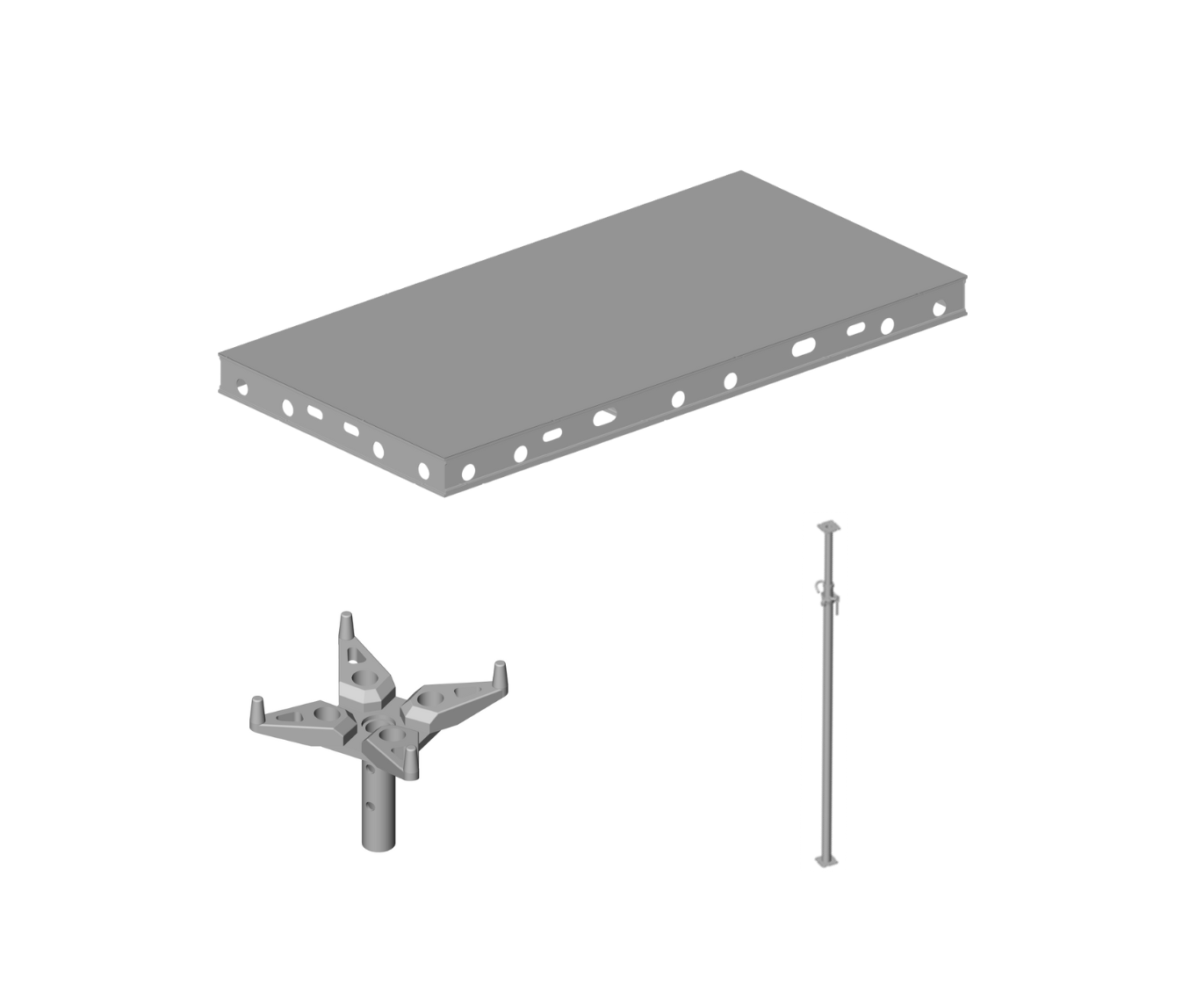

    PERI Aluminium Slab Formwork consists of only 3 main components - PERI Aluminium Slab panel, PERI prop head, and PERI prop.

    PERI Aluminium Slab panel can be set up and dismantled with just two workers. The panels are simply tilted up and locked onto the PERI prop head, so the system is safe to operate with a semi-skilled worker with basic training.
