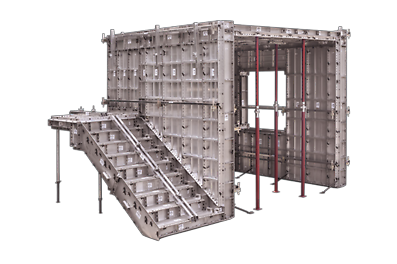

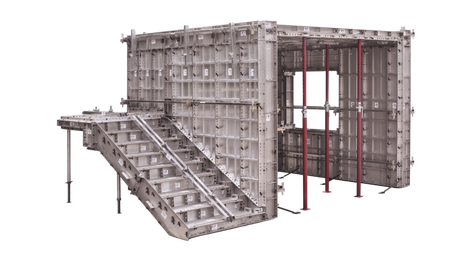

MONOCAST monolithic aluminium formwork system

Robust and durable single-pour solution for fast and precise casting of walls, slabs, columns, beams and stairways

MONOCAST, is a state-of-the-art monolithic aluminium formwork system designed to optimize efficiency, precision, and safety. MONOCAST is produced for PERI under stringent conditions, its innovative panel design and snap tie system redefine speed and simplicity in monolithic construction, setting a new benchmark for modern residential or high repetitive construction.

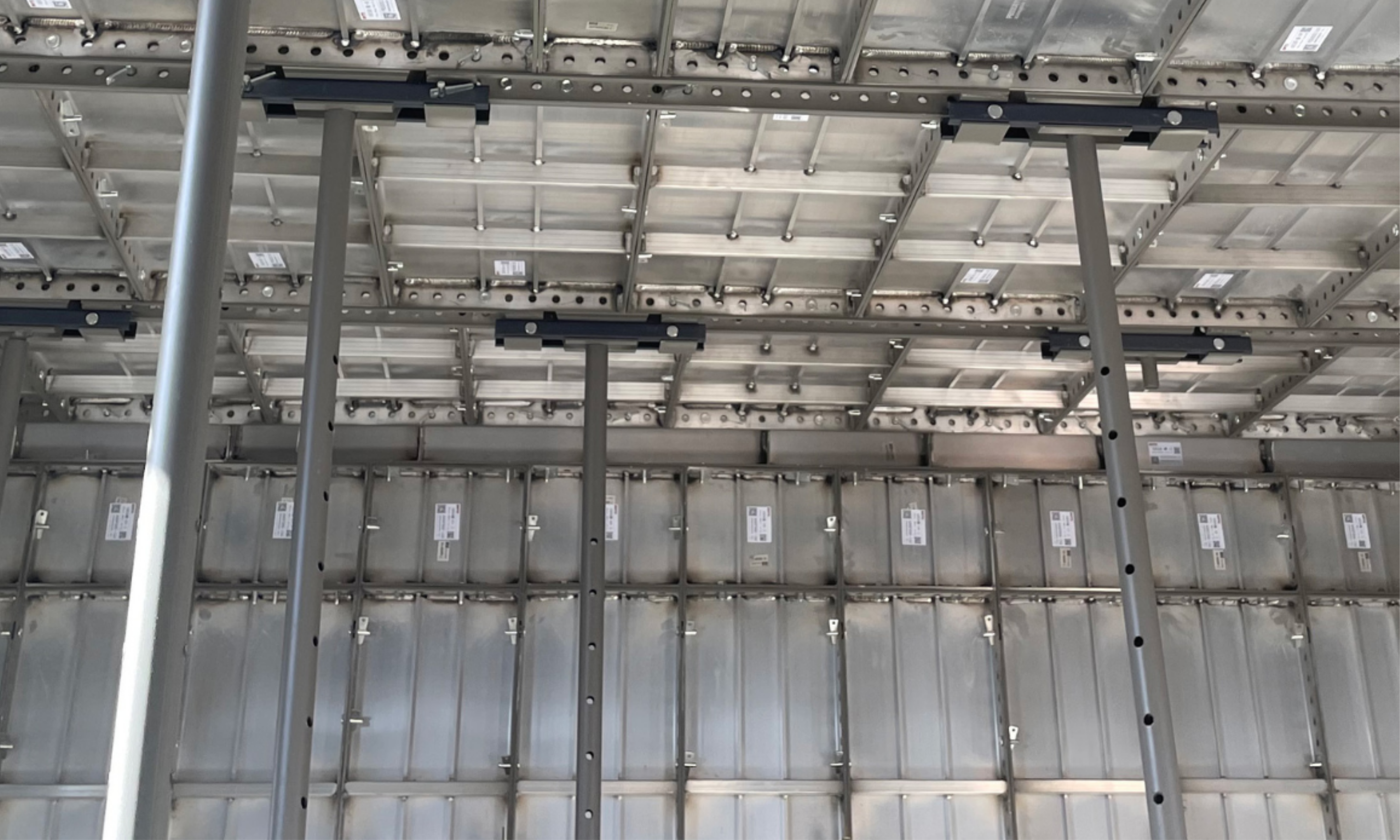

PERI’s monolithic aluminium formwork system allows simultaneous casting of walls, columns, slabs, beams, stairs, door frames, and window hoods - all in one go, accelerating project timelines and reducing costs.

Backed by our expert design and factory-produced digital mockup technology, we ensure every detail fits perfectly - right from the first pour. All formwork connections are precisely designed to prevent concrete leakage, ensuring a smooth, uniform finish and reducing the need for plastering trades.

  • Easy to use
    Robust & Lightweight
    • 22-24 kg/m² in average, it can be easily handled manually.
    • No specialized tools or skilled labor are required.
  • No Plastering Needed
    High Precision
    • Fully extruded panels.
    • Factory-based intelligent digital mockup.
    • Error-free site execution.
  • Fast and Efficient
    Fast Construction Cycle
    • Less tie levels.
    • Eliminating grouting of tie holes.
    • Early striking.
    • Fast cycle times.
  • High resusability
    Cost-Efficient
    • High reusability of standard panels for multiple projects.
    • Powder-coated Aluminium panels increase formwork life
  • sustainability
    100% Recycable
    • Significant cost recovery at the end of its use.
    • Environmentally sustainable solution.
  • Compliance
    CIDB PPS Certified

    Certified IBS solution under CIDB CIS 24 for Reusable Formwork Systems.

Innovative Aluminium Formwork

For faster, safer, and more efficient construction

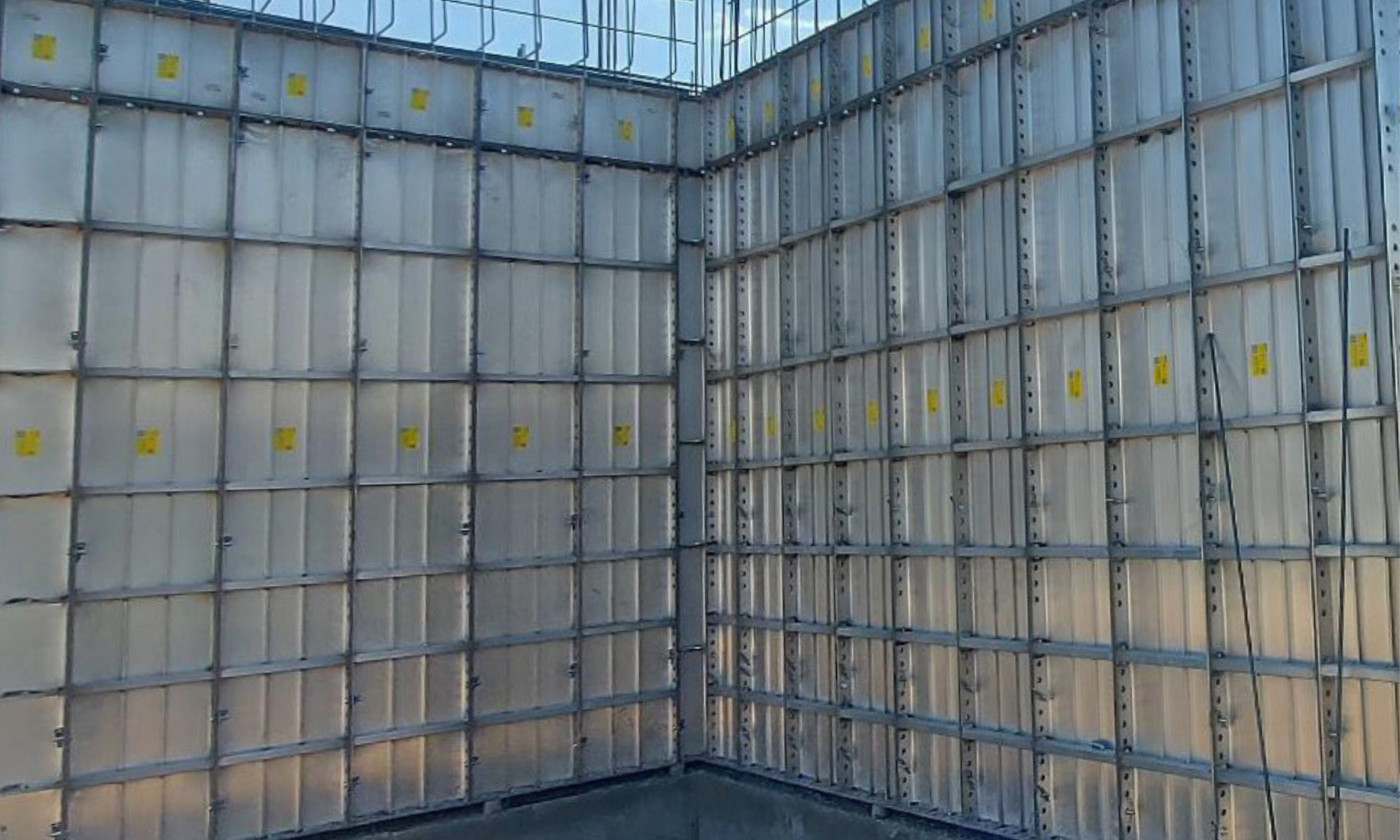

MONOCAST delivers fast and consistent construction cycles - ideal for large-scale, standardised residential developments such as high-rise condominiums, apartments, affordable housing, student dormitories, or government housing schemes, and more.

It is a cast in-situ solution that brings a production-line approach to the construction site. Lightweight, durable, and reusable, it transforms the project site into a highly efficient and well-organised build environment.

  • Precision and speed

    MONOCAST system's design ensures highly efficient forming, with minimal components and high precision. Precision in panels and connections, along with powder-coated panels, ensures a smooth, high-quality finish that reduces the need for plastering work.

  • Maximize design flexibility

    MONOCAST maximises the use of standard panels for speed and consistency, while customised corner panels provide the flexibility to suit various designs, delivering the ideal balance of efficiency and adaptability on-site.

  • Efficient flat snap tie

    MONOCAST is designed to be efficient to use and intuitive as possible. The panels require only 6 tie levels to handle 60 kN/m² concrete pressure up to a height of 3.3 m.

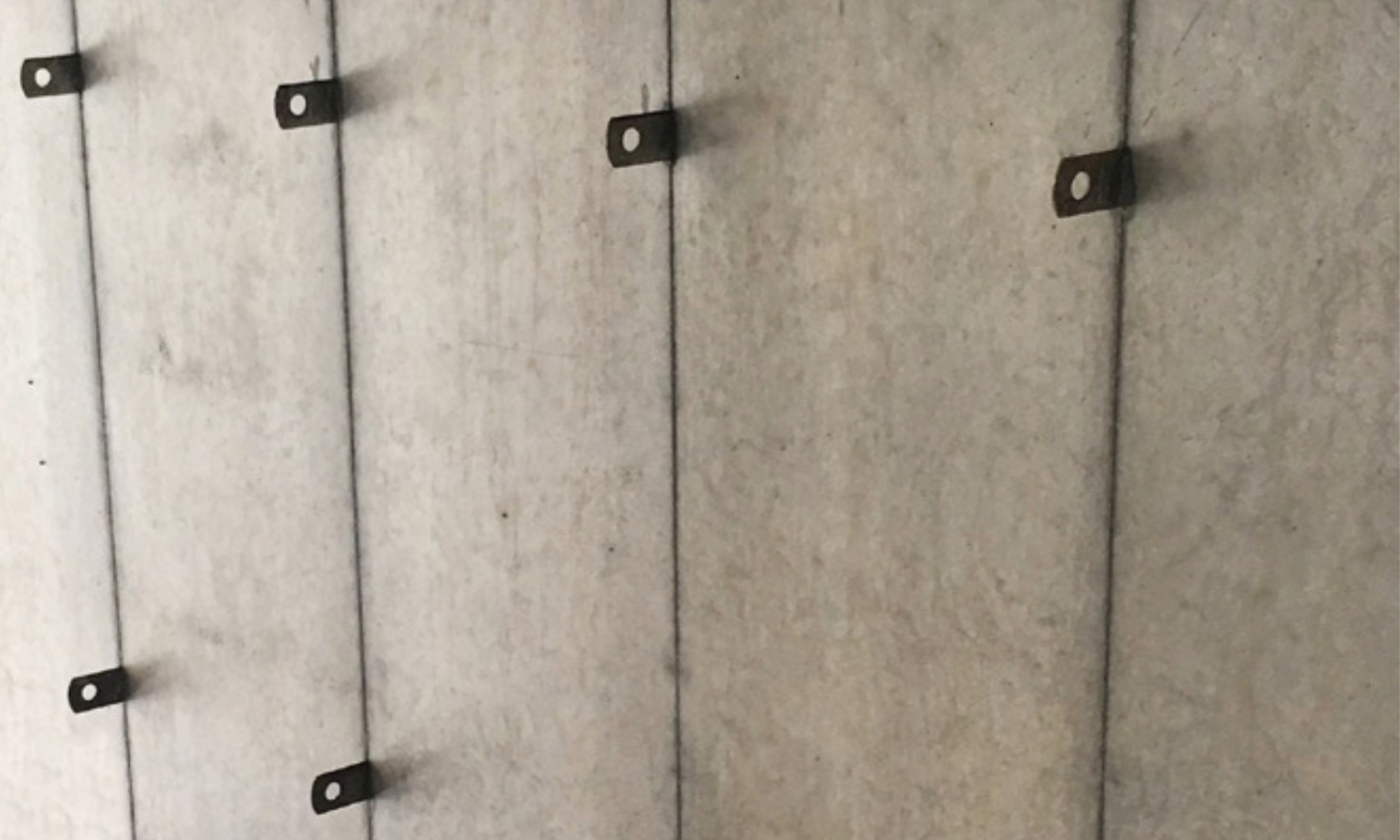

    After concreting, flat snap tie can be easily broken 6 mm from the concrete surface, eliminating the need for grouting and curing.

Product Data Sheet
